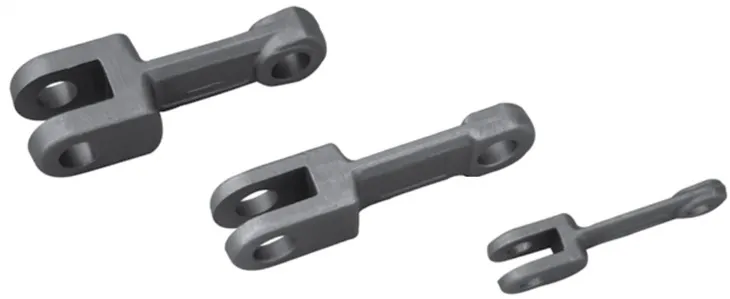

Qhov tseem ceeb tshaj txuas ntawmpoob - forged sawyog tus scraper. Nws yog weled rau ntawm cov saw uas tuaj yeem xa khoom. Muaj ob qhov ntawm lub scraper uas yog siv los txuas cov roj hmab txuas kom tsis txhob muaj kev puas tsuaj. Rau cov khoom, peb feem ntau muab 20CrMni (txuas), 40Cr (pin) thiab Q235 (scraper thiab airclip).
Drawing of Scraper Drop Forging Chain

Dimensions of Scraper Drop Forging Chain for reference
| Cov saw Tsis muaj. | Suab | Qhov ntev | Qhov kawg zog | Qhov hnyav | |||||||
| A | B | C | D | E | T | 20 CrMnTi | 40 Cr | 42CrMo | |||
| mm | mm | mm | mm | mm | mm | mm | KN | KN | KN | Kg / M | |
| 10160B | 101.6 | 24.0 | 8.0 | 36.0 | 14.0 | 9.0 | 6.0 | 90.0 | 100.0 | 130.0 | 3.5 |
| 10160.0 | 101.6 | 30.0 | 13.0 | 36.0 | 14.0 | 14.0 | 9.0 | 120.0 | 150.0 | 200.0 | 3.8 |
| 102.0 | 102.0 | 28.0 | 12.0 | 36.0 | 14.0 | 13.0 | 8.0 | 110.0 | 140.0 | 190.0 | 3.7 |
| 102F | 102.0 | 33.5 | 14.0 | 38.0 | 14.0 | 15.0 | 10.0 | 150.0 | 180.0 | 230.0 | 4.0 |
| 125.0 | 125.0 | 36.0 | 15.0 | 36.0 | 16.0 | 16.0 | 10.0 | 180.0 | 210.0 | 260.0 | 4.8 |
| 14218.0 | 142.0 | 42.0 | 19.0 | 50.0 | 25.0 | 20.0 | 12.0 | 270.0 | 350.0 | 440.0 | 10.3 |
| 14226.0 | 142.0 | 62.0 | 28.0 | 50.0 | 25.0 | 30.0 | 15.0 | 370.0 | 450.0 | 550.0 | 14.7 |
| 150.0 | 150.0 | 42.0 | 16.0 | 48.0 | 25.0 | 18.0 | 12.0 | 230.0 | 280.0 | 350.0 | 9.9 |
| 160.0 | 160.0 | 43.0 | 20.0 | 50.0 | 25.0 | 22.0 | 12.0 | 270.0 | 350.0 | 440.0 | 9.6 |
| 160F | 160.0 | 60.0 | 29.0 | 50.0 | 25.0 | 30.0 | 24.0 | 380.0 | 460.0 | 560.0 | 14.7 |
| 200.0 | 200.0 | 56.0 | 25.5 | 50.0 | 25.0 | 27.0 | 16.0 | 350.0 | 430.0 | 530.0 | 10.7 |
| 200F | 200.0 | 70.0 | 30.0 | 70.0 | 32.0 | 32.0 | 25.0 | 500.0 | 600.0 | 750.0 | 30.7 |
| 216.0 | 216.0 | 58.0 | 25.0 | 72.0 | 35.0 | 27.0 | 18.0 | 480.0 | 570.0 | 700.0 | 21.3 |
| 260.0 | 260.0 | 70.0 | 30.0 | 75.0 | 32.0 | 32.0 | 20.0 | 600.0 | 720.0 | 900.0 | 20.7 |
GZG Scraper Drop Forging Chain kev txiav txim sib koom
1. Nug thiab quoting (Nov 9th, 2021)

2. Daim duab pom zoo (Nov 12th, 2021)

3. Lub sij hawm sib tham (Nov 12th, 2021)

4. Kev sib tham nthuav dav thiab kos npe PI (Lub Kaum Ib Hlis 15th, 2021)

5. Kev lees paub them nqi (Nov 22th, 2021)

6. Npaj ntau lawm (Nov 23rd, 2021)

7. Cov khoom tiav thiab ntim khoom (Lub Ib Hlis 7th, 2022)



Please let us know if you need any help during your inquiry, we are glad to help. And don't worry about our quality, we yet receive any complaint from our clients, GZG Transmission is a trustworthy business partner.
